SO - Shelter Blast Doors (FINNISH NORMS)
Overview
A family of heavy-duty blast rated and gastight SO doors and HS / SL hatches that designed both for installation in Finnish civil defence shelters or other type of protected structures. The doors designed according to Finnish standard requirement and can be also customized to fit specific requirements.
-
Finnish type standard and custom made shelter doors and hatches.
-
The doors and hatches are heavy duty with single plate leaf structure for high pressure loads
-
Standard door clear opening sizes: 900x2000, 1200x2000, 1500x2000, 1900x2000 mm and other
-
Can be equipped with special frame allowing retrofitting the door in existing structural openings or on pre installed frames
ATM SO-1 / SO-1s Shelter Door
-
Blast resistance: 300 kN/m2 (3 bar)
-
Leaf: single metal plate 20mm / 30mm
-
Installation options: casting / retrofit, right/left
-
Standard wall thickness: 200-500mm
-
Locking mechanism: 2x levers with handles inside and outside
-
Equipped with seal for gas tightness
SO-1 / SO-1s Shelter Door
-
Blast resistance: 200 kN/m2 (2 bar)
-
Leaf: single metal plate 20mm / 30mm
-
Installation options: casting / retrofit, right/left
-
Standard wall thickness: 300mm
-
Locking mechanism: 2x levers with handles inside and outside
-
Equipped with seal for gas tightness

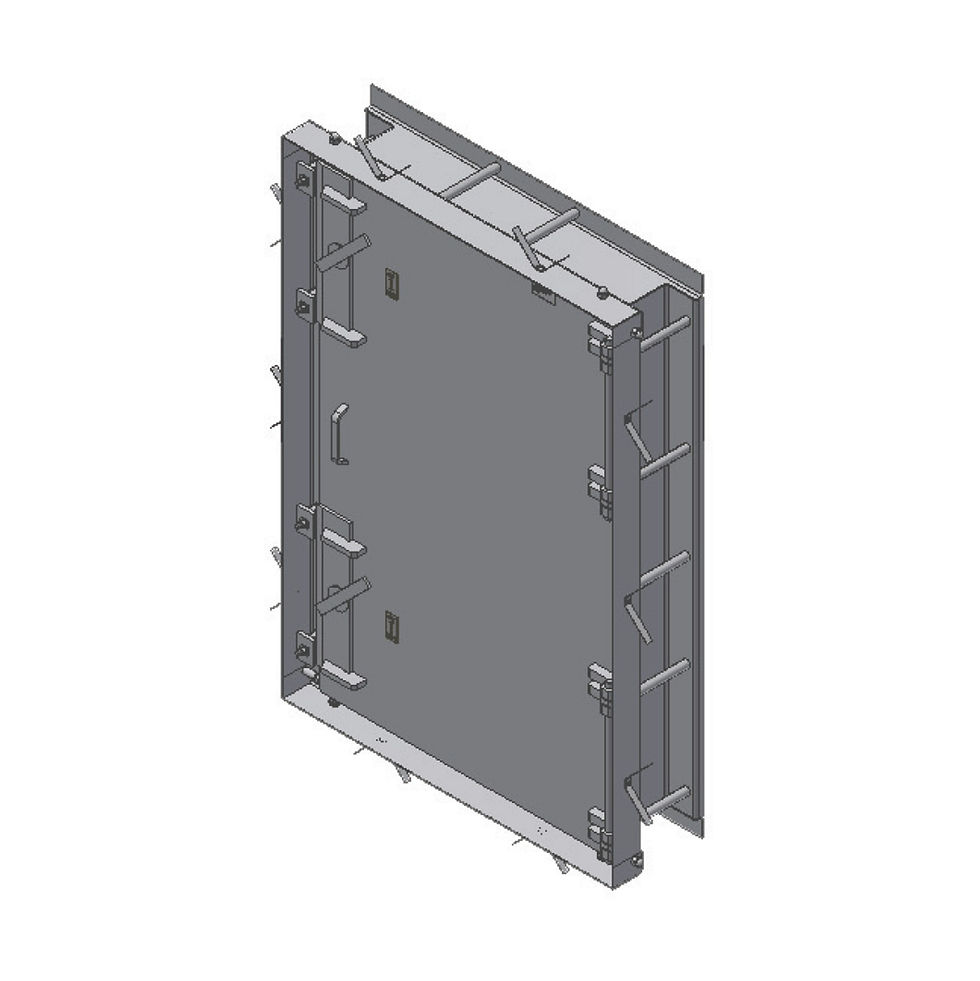

SO-2 Shelter Door
-
Blast resistance: 400 kN/m2 (4 bar)
-
Leaf: single metal plate 30mm
-
Installation options: casting / retrofit, right/left
-
Standard wall thickness: 400mm
-
Locking mechanism: 2x levers with handles inside and outside
-
Equipped with seal for gas tightness
